Silicone Heater Products Silicone Rubber Heater 0.1mm ~1mm Thickness

Name: Silicone Heater Products Silicone Rubber Heater 01mm 1mm Thickness
Brand: TUTCO
Price: 1 USD

Brand Name : TUTCO

Model Number : 5V-240V

Certification : UL

Place of Origin : China

MOQ : 1

Packaging Details : Standard Exporting Packing

Material : Arlon Silicone & PI

Process : vulcanization

Character : Water Proof

Temperature : -200 to 260℃

Thickness : 0.1mm~1mm

Certificate : UL

Price : negotiation

Contact Now

new custom designed electric silicone coil heater flexible silicone heater

Tutco provides UL certificated silicone heater products for all kinds of applications, for lab equipment, medical equipment, Auto batter warming & industral application. etching & wound style customized designed per needs.

Product Description

HEATER properties:	Insulation materials: 0.008” SILICON RUBBER with glass reinforce
Temperature range:	Insulation materials: -200 to 260℃ (-328 to 500℉)
Heater flexibility:	Insulation materials: Good: 0.125 inch(3.2mm) min. bend radius
Maximum watts per square inch in still air at 25 ℃(77 ℉):	Insulation materials: Good: 0.125 inch(3.2mm) min. bend radius
Maximum thickness over element:	Insulation materials: 0.020 inch (0.5mm)
Installation methods:	Insulation materials: Shrink bands, cement, PSA, Epoxy film, Vulcanization
Application description:	Used in industrial and commercial applications.

Silicone Heater Products Silicone Rubber Heater 0.1mm ~1mm Thickness

Comparison

Insulation Materials
Heater Properties	Kapton (Polyimide)	Silicon Rubber	Mica	Polyester	Transparent
Features	0.002 "Kapton requires a 0.001" FEP adhesive	0.002 "Kapton requires a 0.001" FEP adhesive	Thickness of 0.1 mm to 1 mm	0.005 "Polyester with 0.001 " adhesive	0.005 "Polyester with 0.001 " adhesive
Description	A transparent, amber color Polyi-miele film	The red elastomer on glass fiber base	The color is White or green	Transparent flake	Transparent flake
Temperature Range	-240 to 310℃ (-400 to 590℉)	-200 to 300℃ (-328 to 572℉)	-200 to 1000℃ (-328 to 1832℉)	-25 to 120℃ (-13 to 248℉)	-25 to 120℃ (-13 to 248℉)
Dielectric Strength	1000 VRMS	1000 VRMS	1000 VRMS	1000 VRMS	1000 VRMS
Max. watts per square inch	25℃ 60w / inch²	25℃ 60w / inch²	25℃ 100w / inch²	25℃ 35w / inch²	25℃ 15w / inch²
Application Description	KAPTON is special for its stability in vacuum & solvent resistance, often used in medical & aerospace applications.	Silicon rubber, often vulcanized to a metal part and be used in industrial and commercial applications	Mica has many properties of KAPTON. It usually used on cup warmer , iron and any other high temperature product.	POLYESTER has many properties of KAPTON and it’s the cheapest one.	Transparent films that cand be used for a variety of application, including LCD, touch panel, switch glazing and goggles

Product Tags:

silicone heating element

silicone heating sheet

Wholesale Silicone Heater Products Silicone Rubber Heater 0.1mm ~1mm Thickness from china suppliers

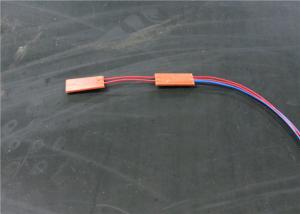

Silicone Heater Products Silicone Rubber Heater 0.1mm ~1mm Thickness Images
